Transmitters
Transmitter for an analog signal

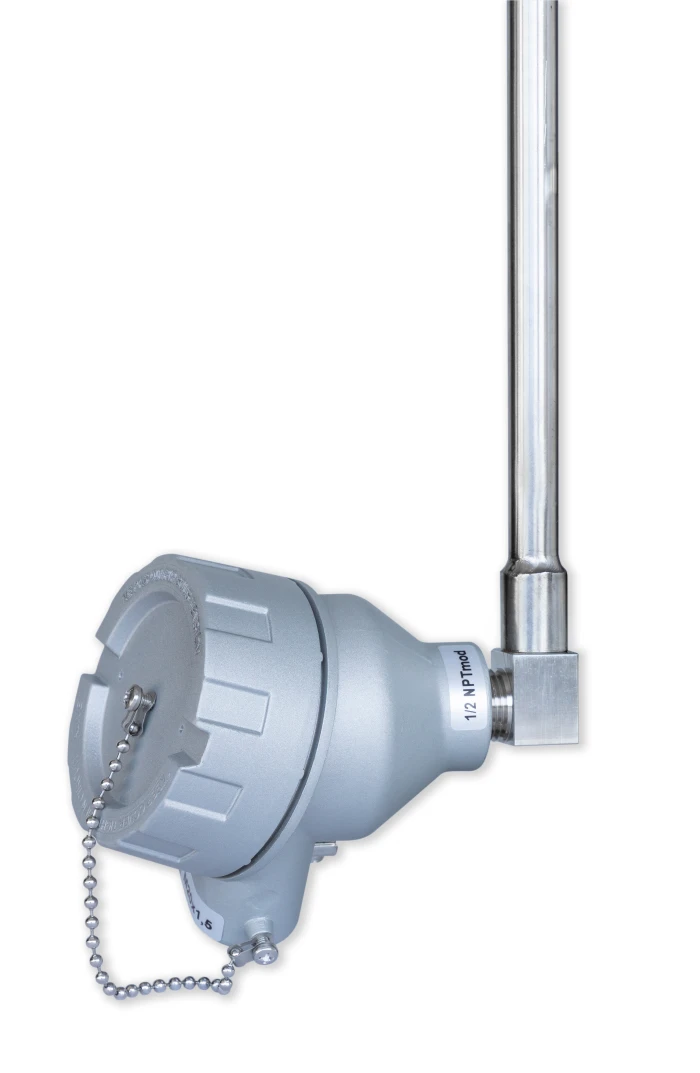

A transmitter can be used to generate an analog signal. The transmitter is mounted along the entire length of the magnetic Level Gauge .
Models:
- Default
- Ex i
- Ex d
With or without HART 5 or 7, Profibus, Fieldbus
Standard
| Implementation | Default |
| Inverter | “SMART” type |
| Nutrition | 8–35 VDC |
| Temperature | -50 ... +350°C |
| Accuracy | ± 7.5 mm |
| Pipe material | RVS 316 L |
| Max. length | 5.5 meters |
| Material for the junction box | Aluminum |
| Density | IP 67 |
| Connection | M16 x 1.5 |
| Exit | 4–20 mA / 2-wire |
| Options | Higher accuracy (± 5, ± 2.5, or ± 1 mm) M20x1.5; 1⁄2” NPT; 3⁄4” NPT connections HART 5 or 7 IP 68 housing PROFIBUS FIELDBUS 304 or 316 stainless steel housing Housing with LCD display (also with optical controls) Output signal in ohms or volts |
Ex i
| Implementation | Default |
| Inverter | “SMART” type |
| Approval | II 1G Ex ia II C T6 Ga II 1D Ex ia III C T135°C Da |
| Nutrition | 8–30 VDC |
| Temperature | -50 ... +350°C |
| Accuracy | ±7.5 mm |
| Pipe material | RVS 316 L |
| Max. length | 5.5 meters |
| Material for the junction box | Aluminum or Stainless Steel |
| Density | IP 67 |
| Connection | M20 x 1.5 |
| Exit | 4–20 mA / 2-wire |
| Options | Higher accuracy (±5, ±2.5, or ±1 mm) M16x1.5; 1⁄2” NPT; 3⁄4” NPT connections HART 5 or 7 IP 68 housing PROFIBUS FIELDBUS 304 or 316 stainless steel housing Housing with LCD display (also with optical controls) Output signal in ohms or volts |
Ex d
| Implementation | Default |
| Inverter | “SMART” type |
| Approval | II 2G Ex db IIC T5..T1 Gb II 2D Ex tb IIIC T100°C..T350°C |
| Nutrition | 8–30 VDC |
| Temperature | -50 ... +350°C |
| Accuracy | ±7.5 mm |
| Pipe material | RVS 316 L |
| Max. length | 5.5 meters |
| Material for the junction box | Aluminum or 316 stainless steel |
| Density | IP 66 / 67 and IP 68 |
| Connection | 3⁄4” NPT or M20x1.5 |
| Exit | 4–20 mA / 2-wire |
| Options | Higher accuracy (± 5, ± 2.5, or ± 1 mm) M16x1.5; M20x1.5; 1⁄2” NPT; 3⁄4” NPT connections HART 5 or 7 IP 68 housing PROFIBUS FIELDBUS 316 stainless steel housing Housing with LCD display (also with optical controls) Output signal in ohms or volts |
